The filtration efficiency of a pleated filter cartridge is a critical parameter in numerous industrial applications, from water treatment to chemical processing. While many factors contribute to this efficiency, the shape of the particles being filtered is often overlooked. As a supplier of pleated filter cartridges, I have witnessed firsthand how particle shape can significantly impact the performance of our products.
Understanding Particle Shape
Particle shape is a complex characteristic that can vary widely. Particles can be spherical, elongated, irregular, or have a flake - like structure. Each shape has unique properties that affect how it interacts with the filter media in a pleated filter cartridge.
Spherical particles are perhaps the most straightforward to analyze. They have a uniform surface area and a well - defined diameter. This uniformity allows them to roll or slide across the filter media more easily. In a pleated filter, spherical particles are more likely to be captured when they come into direct contact with the filter fibers. However, because of their smooth surface, they may also be more likely to bounce off the fibers if the flow conditions are not optimal.
Elongated particles, on the other hand, present a different challenge. Their length can cause them to become entangled in the filter media. They may align with the flow direction and pass through the filter more easily if the pores in the media are large enough. But if the pores are smaller, the elongated shape can cause the particles to get stuck at odd angles, potentially clogging the filter more quickly than spherical particles.
Irregularly shaped particles are the most difficult to predict. Their non - uniform surface area and shape mean that they can interact with the filter media in a variety of ways. They may have sharp edges that can pierce through the filter fibers or get caught in the gaps between the fibers. These particles can also create larger blockages in the filter pores, reducing the overall filtration efficiency.
Flake - like particles are flat and thin. They can easily adhere to the surface of the filter media, creating a layer that can impede the flow of fluid. This layer can also act as a secondary filter, capturing smaller particles that might otherwise pass through the primary filter media. However, if the layer becomes too thick, it can lead to a significant increase in pressure drop across the filter cartridge.
Impact on Filtration Efficiency
The shape of particles has a direct impact on the filtration efficiency of a pleated filter cartridge. Filtration efficiency is typically measured by the percentage of particles removed from the fluid stream.
When it comes to spherical particles, the filtration efficiency is highly dependent on the pore size of the filter media. If the pores are smaller than the diameter of the spherical particles, the particles will be effectively captured. However, if the pores are larger, the particles may pass through. The smooth surface of spherical particles also means that they are less likely to cause damage to the filter media compared to particles with sharp edges.
Elongated particles can reduce filtration efficiency if they are able to align with the flow and pass through the filter pores. This is especially true if the pores are not small enough to trap the length of the particle. Additionally, the entanglement of elongated particles in the filter media can lead to a faster increase in pressure drop, which can reduce the overall performance of the filter cartridge.
Irregularly shaped particles can cause a significant decrease in filtration efficiency. Their unpredictable shape means that they can easily bypass the filter media or cause blockages in the pores. The sharp edges of these particles can also damage the filter fibers, leading to a decrease in the filter's ability to capture particles over time.
Flake - like particles can both enhance and reduce filtration efficiency. On one hand, they can form a secondary filter layer that captures smaller particles. On the other hand, the build - up of these particles on the filter surface can lead to a rapid increase in pressure drop, which can ultimately reduce the flow rate and the overall efficiency of the filter.
Considerations for Pleated Filter Cartridge Design
As a pleated filter cartridge supplier, understanding the impact of particle shape is crucial for designing effective filters. For applications where spherical particles are predominant, a filter with a well - defined pore size can be designed to ensure high filtration efficiency. The filter media can be selected to have a tight pore structure that can capture the spherical particles without causing excessive pressure drop.
When dealing with elongated particles, the filter design may need to focus on preventing entanglement. This can be achieved by using a filter media with a more open structure or by incorporating features that can break up the elongated particles.
For irregularly shaped particles, a more robust filter media is required. The media should be able to withstand the abrasion caused by the sharp edges of the particles. Additionally, the filter design may need to include features that can trap the particles in multiple layers to prevent them from bypassing the filter.
In the case of flake - like particles, the filter design should focus on managing the build - up of the particles on the filter surface. This can be achieved by using a filter media with a high surface area or by incorporating self - cleaning mechanisms.
Our Product Offerings

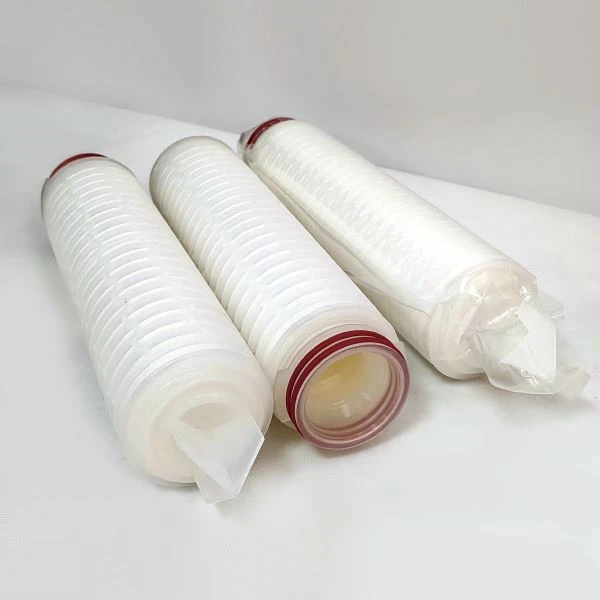

At our company, we offer a range of pleated filter cartridges designed to address different particle shapes and filtration requirements. Our High Solids Liquid Filter Cartridge is specifically designed to handle high concentrations of particles, regardless of their shape. The filter media is engineered to capture a wide range of particle sizes and shapes, ensuring high filtration efficiency even in challenging applications.
Our High Viscosity Filter Cartridge is suitable for applications where the fluid has a high viscosity. The filter design takes into account the unique flow characteristics of high - viscosity fluids and is optimized to capture particles effectively.
For applications where corrosion resistance is a concern, we offer the Corrosion Resistant Absolute Filter Cartridge. This cartridge is made from materials that can withstand harsh chemical environments, ensuring long - term performance and reliability.
Conclusion
The shape of particles has a profound impact on the filtration efficiency of a pleated filter cartridge. As a supplier, we understand the importance of considering particle shape when designing and selecting the right filter for a specific application. By offering a diverse range of filter cartridges, we can provide solutions that meet the unique needs of our customers.
If you are in need of a pleated filter cartridge for your application, we encourage you to contact us for a detailed discussion. Our team of experts can help you select the right filter based on the particle shape, fluid characteristics, and other factors. We are committed to providing high - quality filtration solutions that ensure optimal performance and efficiency.
